- Seyond
Seyond
Seyond Falcon K
Long range LiDAR detection is a key technology that ensures more safety. Falcon K provides ultra-long detection range up to 500 meters and can detect dark objects with 10% reflectivity up to 250 meters. It spots distant obstacles earlier and gives the vehicle time to respond in advance, improving the autonomous driving experience.
Falcon K delivers image-grade point cloud and dynamic region of interest (ROI). Image-grade point cloud and dynamic-frame high-density region of interest ensure clarity of key detection and safe autonomy in any environment.
Falcon K represents true engineering achievement and Seyond’s tireless devotion to quality. Falcon K has passed reliability tests including salt spray, dust, vibration, mechanical shock, protection against water, etc., and is already in mass production.
Highlights
- 2 – 500 m range (250 m at 10% NIST target)
- 120º x 25º Field of View (H x V)
- Resolution up to 0.06º
- Scan rate 5, 10, or 20 FPS
- 150 Lines at 10 FPS
- 900,000 Points/sec
- Dual Return mode
- Available ROS/ROS2/APOLLO Drivers

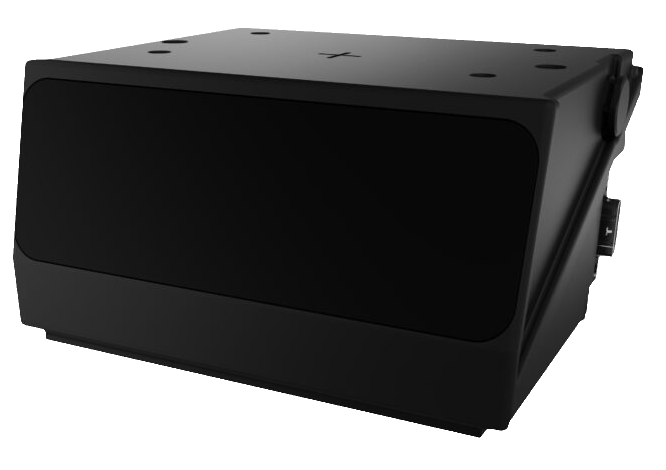

Seyond Falcon Q
Falcon Q provides an unparalleled combination of ultra-long distance range and image-grade resolution, enabling the highest level of safety. The combination of range and resolution detects small objects at far distances, giving the vehicle time to respond, improving the autonomous driving experience.
The 1550nm wavelength performs extremely well in adverse weather conditions and is exceptionally resistant to interference from the sun or other lidar.
Seyond is running three automotive grade manufacturing lines which have a capacity of over 300,000 units per year. The manufacturing process is 90% automated, maintaining a high level of product quality and consistent precision performance.
Highlights
- 2 – 500 m range (250 m at 10% NIST target)
- 120º x 25º Field of View (H x V)
- Resolution up to 0.05º
- Scan rate 5, 10, or 20 FPS
- 150 Lines at 10 FPS
- 900,000 Points/sec
- Dual Return mode
- Available ROS/ROS2/APOLLO Drivers

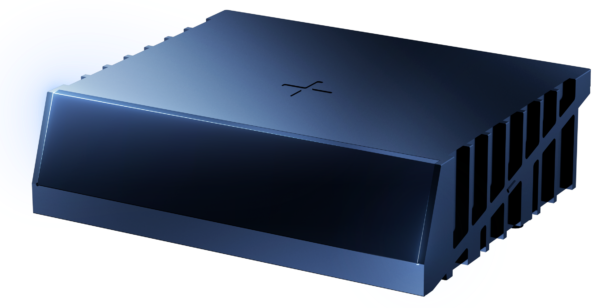

Seyond Robin E
Robin E features a 200-meter range at 10% reflectivity with ultra-high resolution of 0.1°×0.1°, which ensures the perception and safety requirements of assisted driving.
The Robin E scanning architecture borrows from Falcon’s proven automotive grade design, ensuring stable and reliable performance.
With advanced modular design, Robin E can be easily integrated into roof, lights, bumpers or even behind the windshield with compact size and ultra-low power consumption.
Highlights
- 0.2 – 250 m range (200 m at 10% NIST target)
- 120º x 24º Field of View (H x V)
- Resolution up to 0.01º
- Scan rate 10 or 20 FPS
- 128 Scan Lines
- Up to 1,952,000 Points/sec
- Dual Return mode
Seyond Robin W
Robin W features an ultra-wide field of view (FOV) of 120°×70°, with broader side-view detection and no blind zones.
Robin W detects up to 70 meters at 10% reflectivity which is twice the detection range of other side-view lidar, while maintaining a minimum range of down to 0.1 meters which keeps the blind zone at an absolute minimum.
Highlights
- 0.1 – 150 m range (70 m at 10% NIST target)
- 120º x 70º Field of View (H x V)
- Resolution up to 0.1º x 0.36º (H x V)
- Scan rate 10 or 20 FPS
- 192 Scan Lines
- Up to 1,772,000 Points/sec
